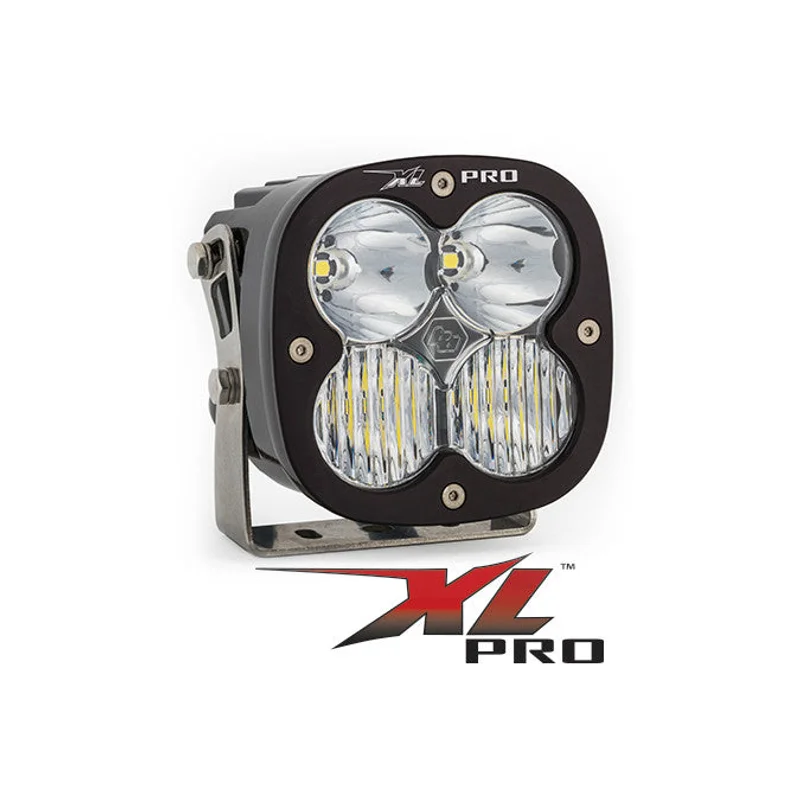

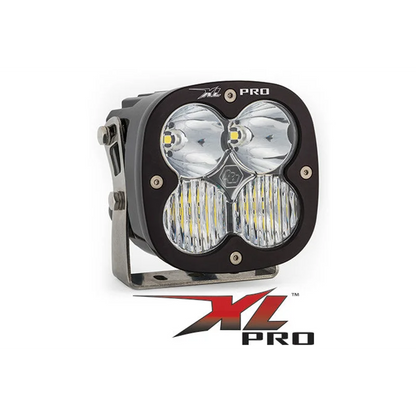

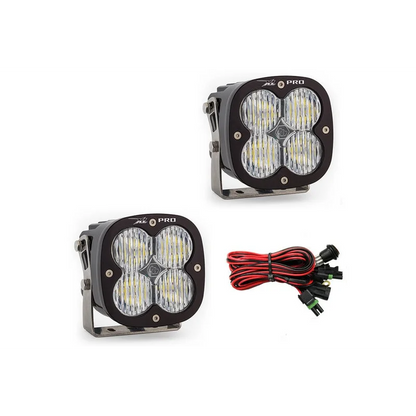

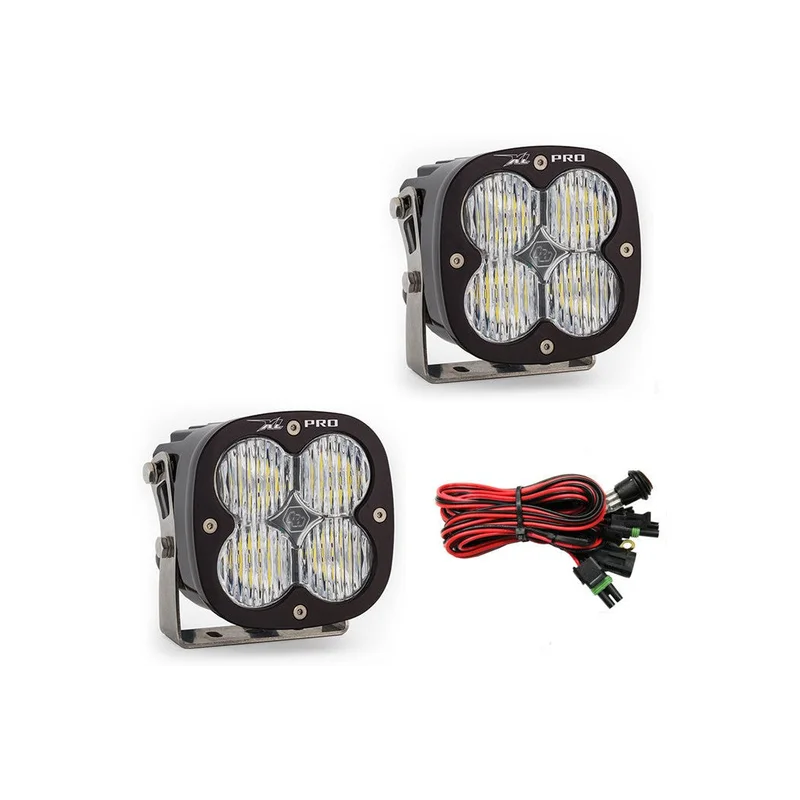

Aux LED - XL PRO - Wide Cornering / Square

XL Pro LED Driving/Combo

Patterns:

• Driving/Combo:  Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Wide Driving (44°) and spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Manual

Specifications:

• Lumens: 4,900 Utilizing 4 Cree XP-L LEDs
• Wattage/Amps:  40W / 3.33A
• Dimensions: 133mm x 92.7mm x 133mm (5.24" x 3.65" x 5.24")
• Weight: 1111g
• LED Life Expectancy: 49,930 Hours
• Front Lens:  Hard coated Polycarbonate
• Housing:  Hard Anodized & Powder Coated Cast Aluminum
• Bezel: Billet Machined Aluminum
• Hardware & Bracket Material: Stainless Steel
• Exceeds MIL-STD810G (Mil-Spec Testing)
• Built-In Over voltage Protection
• IP69K (Waterproof up to 2743mm (9ft) & Pressure Washable)
• IK10 Compliant (Mechanical Impact Testing)

Includes:

• XL-R Pro LED Light
• Mounting Bracket

Part Number:-

• BD Square Driving Combo 50 78-03
• BD Square Speed Spot 50 78-01
• BD Square Wide Beam 50 78-05

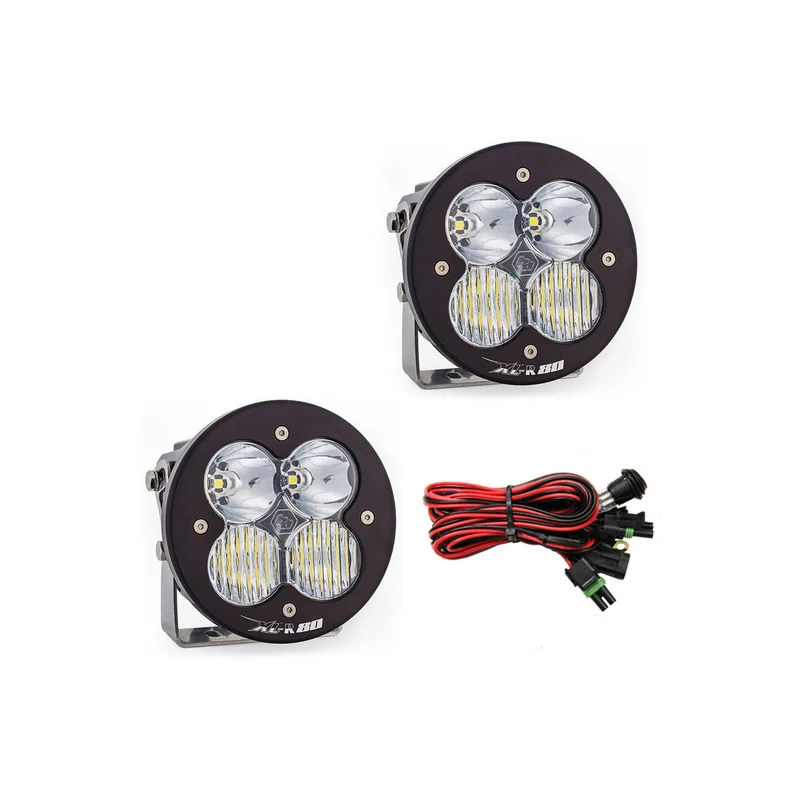

• BD Round Driving Combo 53 78-03
• BD Round Speed Spot 53 78-01
• BD Round Wide Beam 53 78-05

DATA SHEET
