The diamond plate features industry-standard AMPS hole pattern; connects to a variety of RAM® device holders
Includes B size medium length RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty
RAM 1" Ball Standard Length Double Socket Arm with Diamond Base

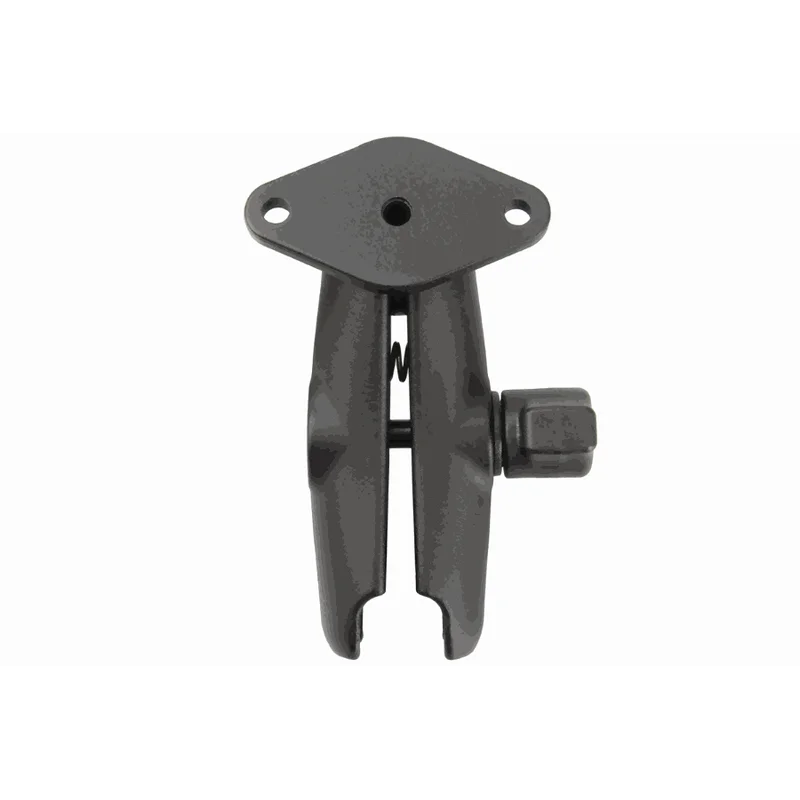

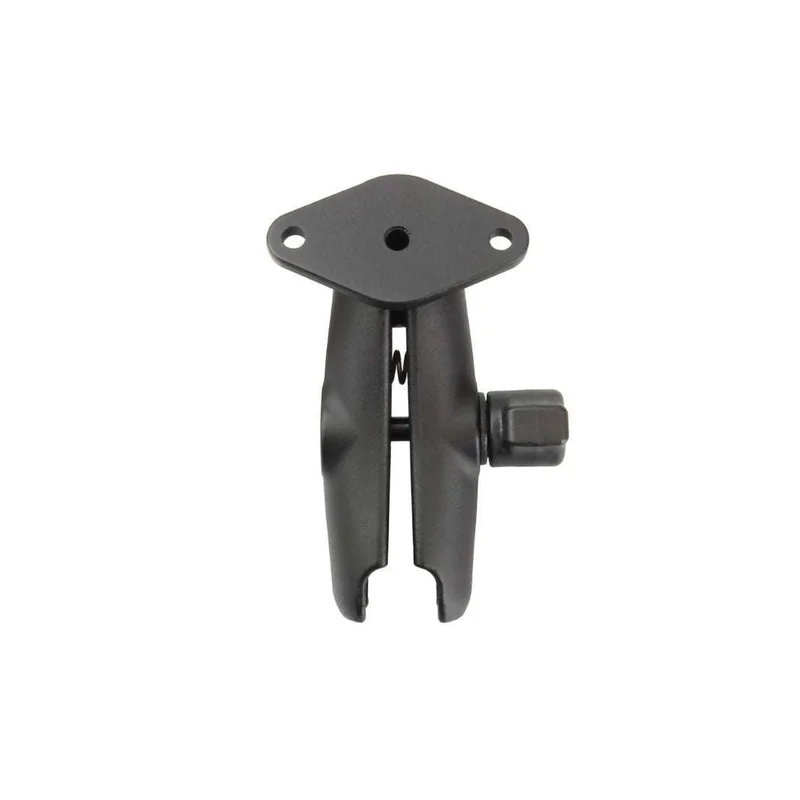

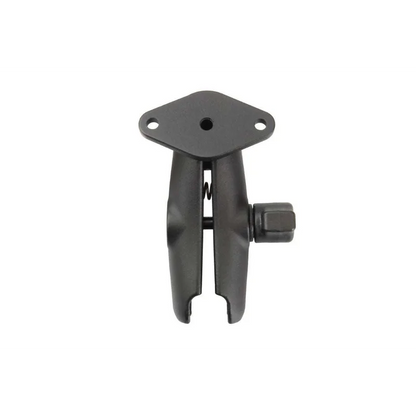

The RAM-103-238U consists of a diamond base and standard length double socket arm that will accept 25mm ball bases. The diamond base measures 61.7mm x 33.2mm and contains two holes 1.912" from center to center, positioned at both ends of the diamond base.
The hole pattern found on the diamond base will connect to many RAM cradles, as well as third-party cradles including mounts with the industry standard AMPS hole pattern.
Designed into the mount is a 25mm diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob allows for you to maneuver the mount to your optimum viewing position.
