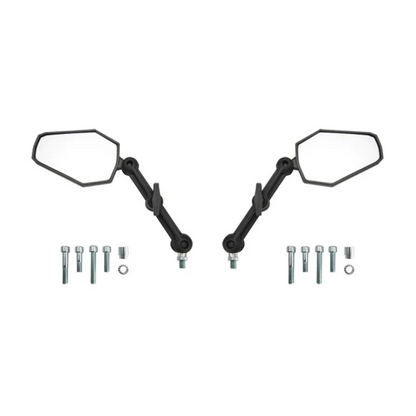

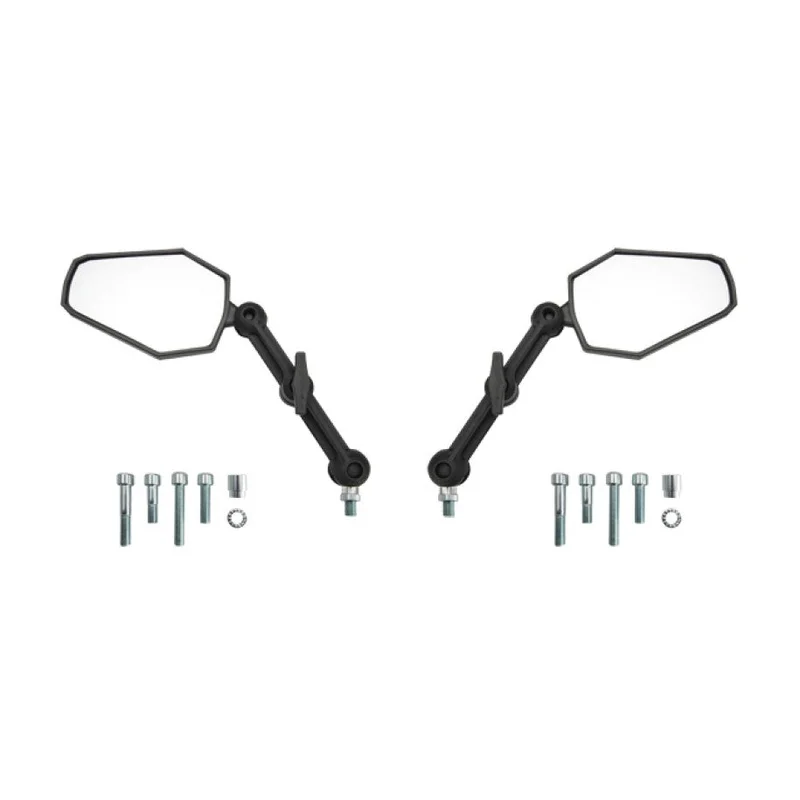

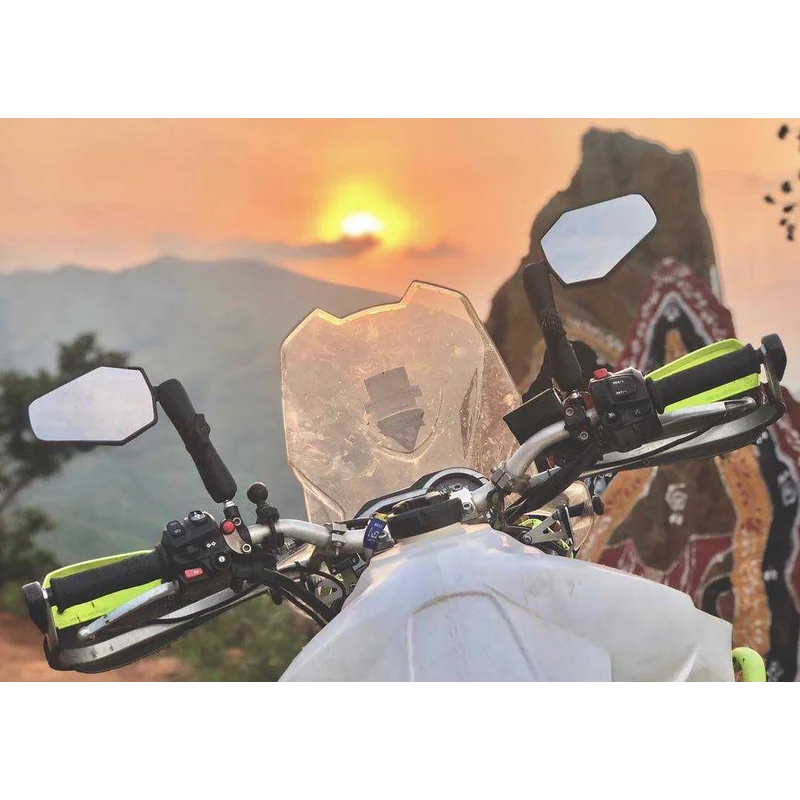

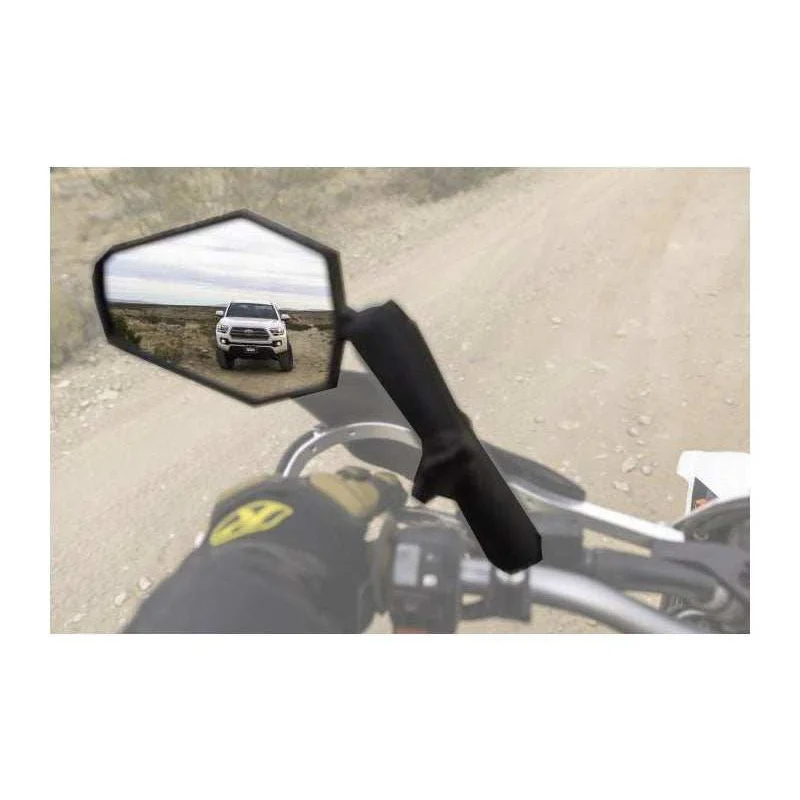

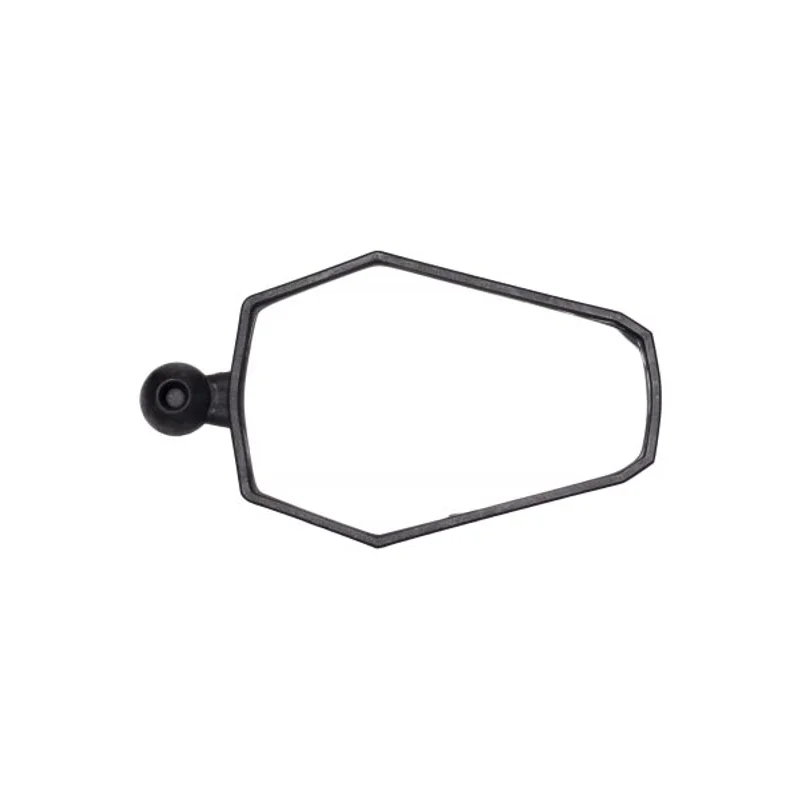

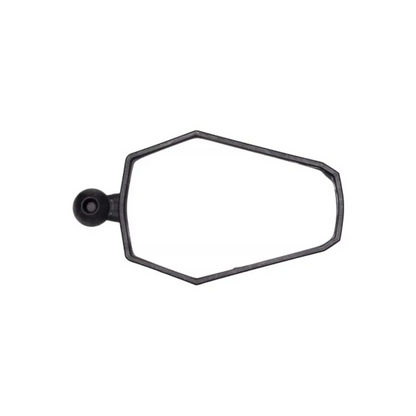

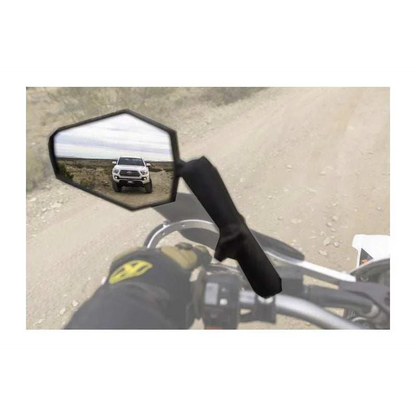

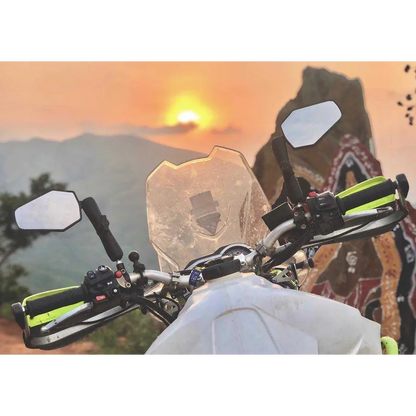

Double take Adventure Mirrors are indestructible mirrors that fold out of the way along the handlebar because they are intelligently designed using the Ram Ball Sockets. The Size is such that they offer a greater angle of vision behind.
- Mirror measures 135mm x 90mm (5.25in x 3.5in)
- Overall length 175mm (7inch)
- Mirrors are Indestructible reinforced Zytel body
- SAE spec convex glass lens
- Easy to fold, remove or swap between bikes
*Please note: The strong attribute applies only to the mirror body, NOT THE MIRROR GLASS. Mirror glass is still susceptible to damage
IF YOUR BIKE HAS OPPOSITE THREADS LIKE KTM 390, ETC THEN PLEASE BUY THIS MIRROR THREAD ADAPTOR AS WELL AS WELL
ARM

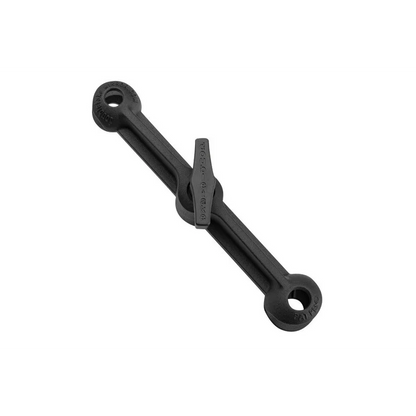

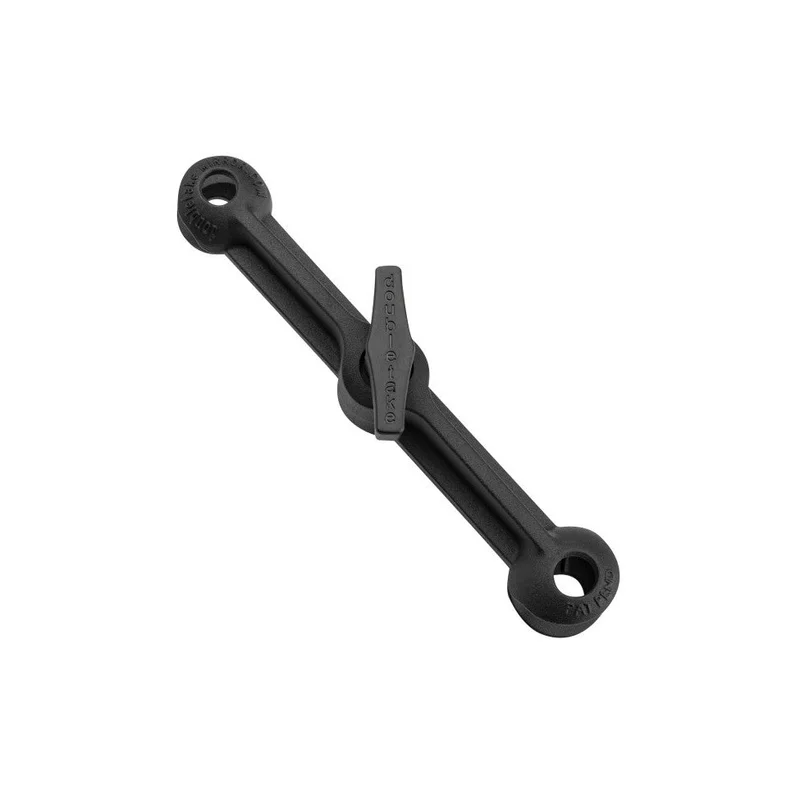

Doubletake's new 15 cm arm
Technical Specifications:
-
Length center to center: 15 cm
-
Length overall: 17.8 cm
-
Material: A380 Die Cast aluminum
Better hold, less effort. The whole system has been engineered together to keep the mirror from moving, except when it has to in an impact.
Longer Length. The Doubletake Arm 15.0 is 15% longer than anything else on the market, offering great visibility, especially around luggage.
Radial Ridges. The clamping surface at the base has radial ridges to hold the ball more securely. These ridges prevent the arm from unintentionally rotating relative to the base but without mechanical interference that could be damaged under impact.
Asymmetrical Clamping. Because the ball diameters are different, the clamp is located off-center toward the mirror. The larger base diameter creates more stiffness at the bottom, and the offset clamp grips the mirror tighter to equalize rigidity.
Easy Adjustment. Our low-profile thumb nut is 25% longer to make adjustment easy, even when wearing gloves.
Compatible. Mirror end 2.54 cm socket works with any 2.54 cm ball accessory (GPS, Camera, etc.).
BASE

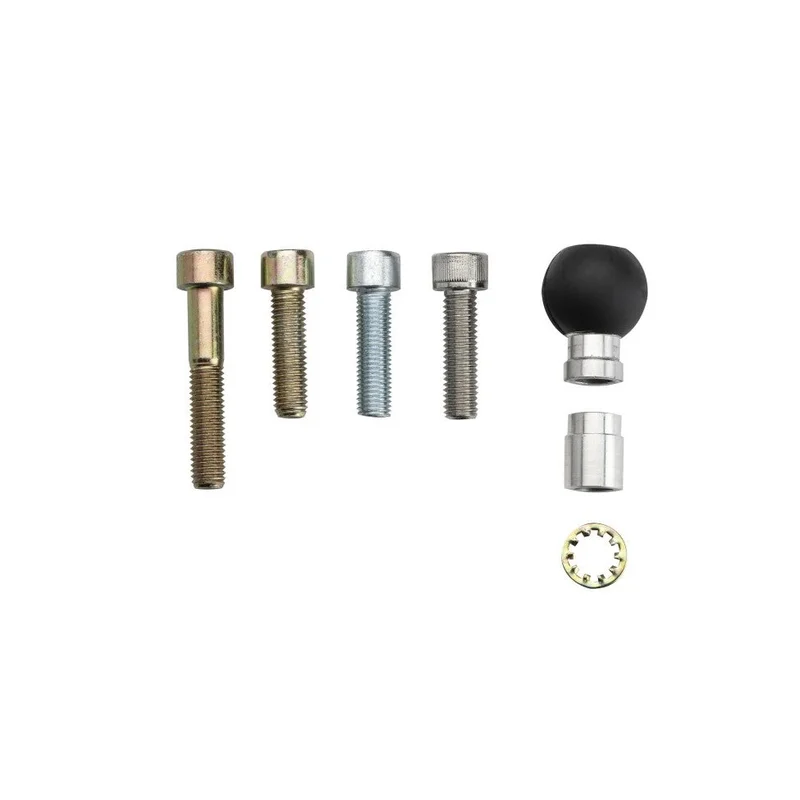

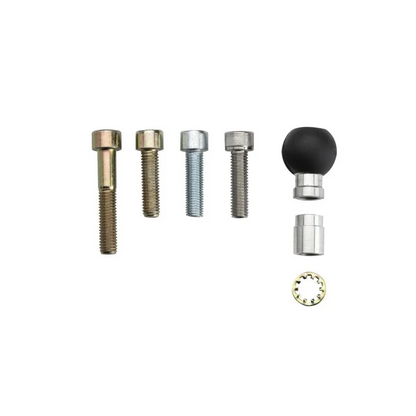

Doubletake Base Kit
- Includes 1.125" Ball Stud, 10mm x 1.25 bolt long and short, Reverse Thread Bolt 10mm x 1.25, 10mm x 1.5 short bolt, lock washer.
- Weight ball only: 20 grams
- Weight ball kit: 110 grams
- Materials: Billet Aluminum, Nitrile, hardened Steel
- Diameter: 1.125” (29mm)
- Height: 1.37" (35mm)
- Extension: 0.78" (20mm)
Universal Fit. Every ball kit includes 4 bolts to allow fitment to any bike and eliminate unsightly adapters.
Larger size. Our ball is 1.125”, and even that small increase in diameter makes a big difference in rigidity. This means you don’t have to overtighten the arm to keep it from moving while riding.
Won't Crush. Our aluminum-filled base ball, coated with high-quality nitrile rubber won’t degrade under extended compression. You won’t have to repeatedly adjust your mirrors, because both ends of the system are designed to last.
Won't spin. We include a lock washer that secures the ball in relation to the bike.
