Skene Designs LED Lights - Yellow (VER A)

Skene Designs Photon Booster LED modules

The Photon Booster is the LED module used in our Photon Blaster and P3 visibility lighting systems. Each module draws very little power and consists of 12 high-brightness LEDs mounted in a waterproof housing.

Increase your visibility by adding additional modules to side cases, top cases, or adjacent to your other modules. Our controllers are capable of powering up to 40 of these modules so it is easy to expand.

Available in three colors:

• Red - for rear mount applications
• Yellow - for front or side mount applications
• White - for front mount applications

We recommend yellow for front mount applications as studies have shown that yellow is more visible to the human eye than white and it helps distinguish you from the headlights of the cars behind you.

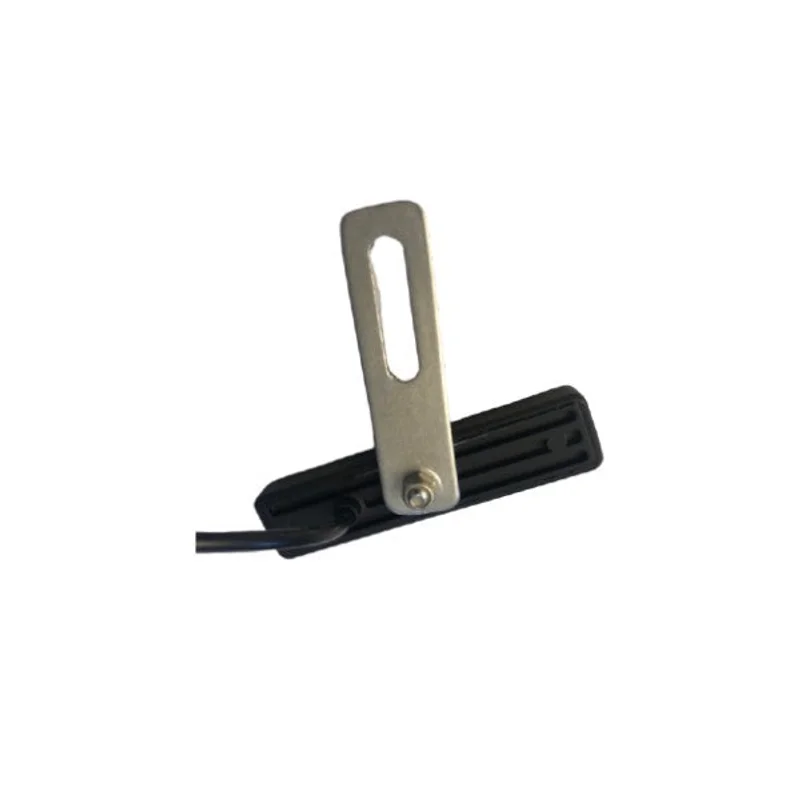

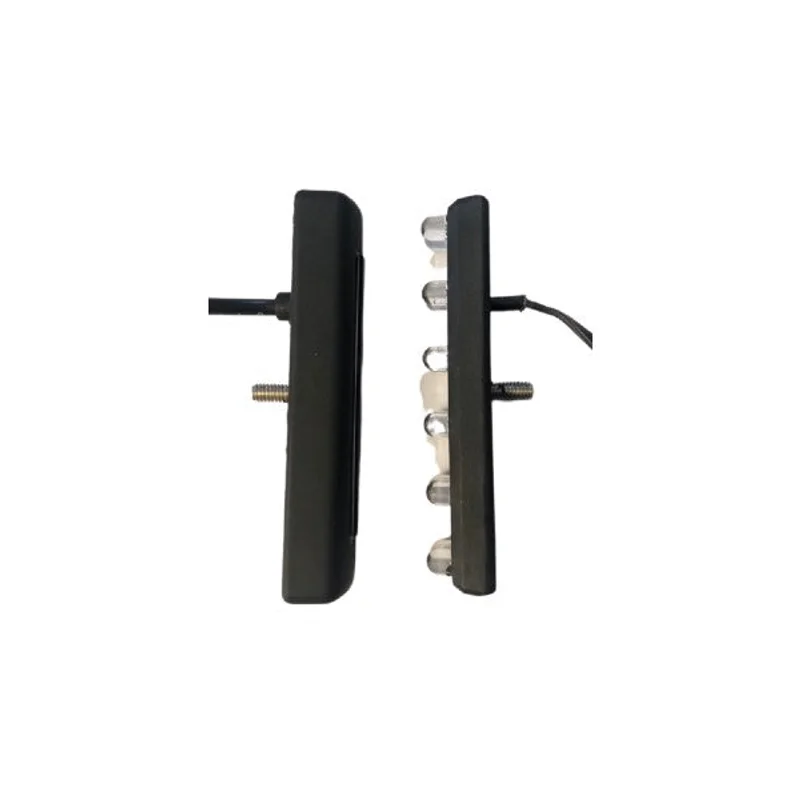

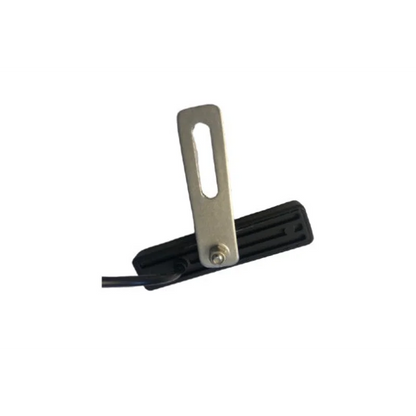

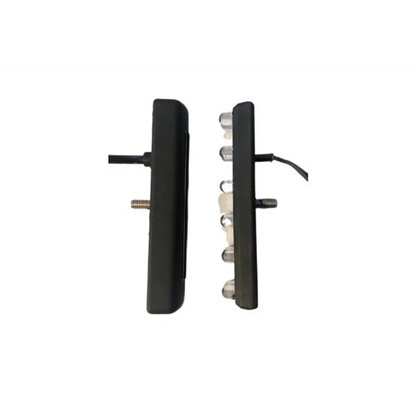

A 4mm stainless steel mounting bolt protrudes 7.5mm (0.3") from the rear of the housing, and is designed to work with a variety brackets available from us or your own mounting bracket.

The Photon Booster LED modules can also be used without our controllers. They are designed to operate from 9-16 volts.

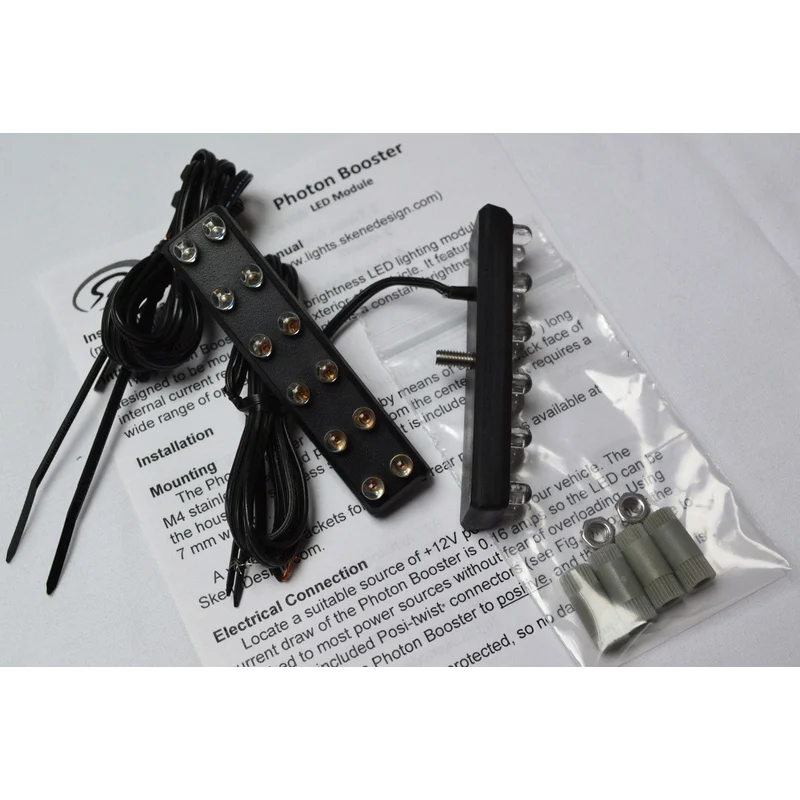

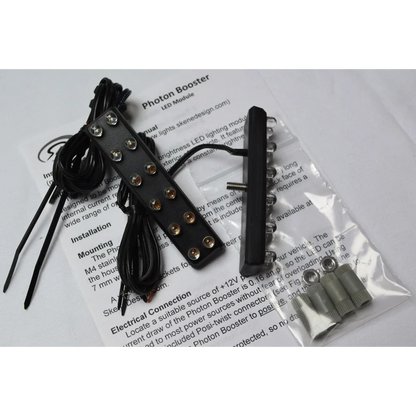

WHAT IS INCLUDED

• LED module - 2 PCS

Free included parts

• 4mm stainless steel locking nut - 2
• Posi-Twist connectors - 4
• Installation manual - 1

TECH SPECS

• Current draw: 0.14A
• Operating voltage: 9 - 16 VDC
• LED intensity: total of 252,000 mcd
• Intensity regulation: the LED module incorporates a current regulator to maintain maximum LED brightness even under low voltage conditions.
• Angle of half intensity: 15 deg;
• Wavelength: 592 nm (yellow), 612 nm (red)
• Dimensions: 3" x 0.625" x 0.35"
• Weight: 3/8 oz.
